Alfa – DirectB2B

Alfa LoRa HaLow 868MHz 5dBi Antenna –High-Gain IoT Antenna

design4site — Thu, 07 May 2026 02:50:20 +0000

DirectB2B
Alfa LoRa HaLow 868MHz 5dBi Antenna –High-Gain IoT Antenna

AOA-868-5ACM is an omnidirectional outdoor antenna with 5dBi gain, that operates in 863-870 MHz frequency range and therefore covers 868 MHz LoRa/HaLow/Sigfox frequency. The antenna is equipped with an N Male connector. The AOA-868-5ACM housing is made of durable weatherproof materials and can be used in difficult environmental conditions. The length of this compact antenna is 18 cm and the diameter is 22 mm.

מפרט טכני

Wireless Network
Standards	802.11ah
Antenna
Antenna Design	Omni
Wireless Antenna Frequency Range & Gain	0.863 – 0.870 (GHz) 5 (dBi)
Beamwidth	360 °
VSWR	< 2.0
Impedance	50 Ω
Connectors
RF Connectors	(1) N Male
Physical Parameters
Dimensions	Ø22 x 180 mm
Weight	0.082 kg
Operating Temperature	-40 °C to 85 °C

AOA-868-5ACM

הפוסט Alfa LoRa HaLow 868MHz 5dBi Antenna –High-Gain IoT Antenna הופיע לראשונה ב-DirectB2B.
design4site

Alfa LoRa/HaLow 915MHz Antenna 5dBi N-Male

design4site — Thu, 07 May 2026 02:50:20 +0000

DirectB2B
Alfa LoRa/HaLow 915MHz Antenna 5dBi N-Male

AOA-915-5ACM is an omnidirectional outdoor antenna with 5dBi gain, that operates in 902-928 MHz frequency range and therefore covers LoRa/HaLow/Sigfox frequency at 915 MHz. The antenna is equipped with an N Male connector. The AOA-915-5ACM housing is made of durable weatherproof materials and can be used in difficult environmental conditions. The length of this compact antenna is 18 cm and the diameter is 22 mm.

מפרט טכני

Wireless Network
Standards	802.11ah
Antenna
Antenna Design	Omni
Wireless Antenna Frequency Range & Gain	0.902 – 0.928 (GHz) 5 (dBi)
Beamwidth	360 °
VSWR	< 2.0
Impedance	50 Ω
Connectors
RF Connectors	(1) N Male
Physical Parameters
Dimensions	Ø22 x 180 mm
Weight	0.082 kg
Operating Temperature	-40 °C to 85 °C

AOA-915-5ACM

הפוסט Alfa LoRa/HaLow 915MHz Antenna 5dBi N-Male הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Antenna 8dBi IP67 N-Female

design4site — Thu, 07 May 2026 02:49:37 +0000

DirectB2B
4G LTE Outdoor Antenna 8dBi IP67 N-Female

The AOA-4G-8F is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with IP67 enclosure protection. Operates in frequency bands 698-960 MHz SISO 1×1 with 6 dBi gain and 1710-2700 MHz SISO 1×1 with 8 dBi gain. Equipped with an N Female connector.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.960 (GHz) 6 (dBi), 1.710 – 2.700 (GHz) 8 (dBi)
Mobile Antenna Gain	6 dBi, 8 dBi
Beamwidth	18 ° Vertical, 360 ° Horizontal
Polarization	Vertical
VSWR	< 1.5
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Male
Physical Parameters
Color	Gray
Material	Fiberglass
Ingress Protection Code	IP67
Dimensions	Ø20 x 600 mm
Weight	0.65 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AOA-4G-8F

הפוסט 4G LTE Outdoor Antenna 8dBi IP67 N-Female הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Antenna 5dBi IP67 Male

design4site — Thu, 07 May 2026 02:49:37 +0000

DirectB2B
4G LTE Outdoor Antenna 5dBi IP67 Male

The AOA-4G-5M is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with IP67 enclosure protection. Operates in frequency bands 698-960 MHz SISO 1×1 with 4 dBi gain and 1710-2690 MHz SISO 1×1 with 5 dBi gain. Equipped with an N Male connector.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.960 (GHz) 4 (dBi), 1.710 – 2.700 (GHz) 5 (dBi)
Mobile Antenna Gain	4 dBi, 5 dBi
Beamwidth	35 ° Vertical, 360 ° Horizontal
Polarization	Vertical
VSWR	< 1.5
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Male
Physical Parameters
Color	Gray
Material	Fiberglass
Ingress Protection Code	IP67
Dimensions	Ø20 x 320 mm
Weight	0.25 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AOA-4G-5M

הפוסט 4G LTE Outdoor Antenna 5dBi IP67 Male הופיע לראשונה ב-DirectB2B.
design4site

5G Mobile Omni Antenna –Marine Grade Outdoor Antenna

design4site — Thu, 07 May 2026 02:49:37 +0000

DirectB2B
5G Mobile Omni Antenna –Marine Grade Outdoor Antenna

The ALFA AOA-M5G is a high-performance, marine-grade antenna designed for 5G and 4G LTE networks, providing reliable, omnidirectional connectivity across extensive frequency bands. Covering 600–960 MHz at 3 dBi gain and 1710–4200 MHz at 5 dBi gain, this antenna is ideal for applications requiring consistent signal reception, such as in marine and RV environments. Its omnidirectional radiation pattern ensures a 360° horizontal beamwidth, capturing signals from all directions, making it a versatile solution for maintaining connectivity on moving or stationary vessels and vehicles.

The ALFA AOA-M5G is vertically polarized, enhancing signal stability in challenging conditions, with a vertical beamwidth of 18° that directs signal coverage where it’s needed most. Designed with an impedance of 50 Ω and a maximum input power of 100 W, this antenna is built to handle high power inputs, providing robust signal transmission and reception. This makes it suitable for high-performance routers and boosters, allowing users to maximize signal quality for demanding applications.

Built with rugged marine-grade materials, the AOA-M5G is constructed to withstand harsh environmental conditions. The antenna radome is made of fiberglass, offering enhanced durability and corrosion resistance in saltwater environments. This antenna operates reliably in extreme temperatures from -40°C to 70°C, ensuring performance in both hot and cold climates. Rated to endure wind speeds of up to 60 m/s, the AOA-M5G is ready for heavy-duty use in exposed locations, providing stable performance in rough weather and ensuring constant connectivity.

Equipped with an N-female connector, the AOA-M5G ensures broad compatibility with standard cables and devices, simplifying installation in a variety of setups. This connector type is widely supported across marine and industrial equipment, making integration hassle-free and adaptable to different network configurations. The AOA-M5G offers a user-friendly, plug-and-play setup, making it simple to enhance network connectivity with minimal effort. This antenna is a reliable choice for maintaining strong network support across various environments, whether on the road, at sea, or in remote outdoor locations, ensuring users have access to stable connections when they need it most.

מפרט טכני

Mobile Network
Mobile Network Generation	5G (NR)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.60 – 0.96 (GHz) 3 (dBi), 1.71 – 4.20 (GHz) 5 (dBi)
Mobile Antenna Gain	3 dBi, 5 dBi
Beamwidth	18 ° Vertical, 360 ° Horizontal
Polarization	Vertical
VSWR	< 3
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Female
Physical Parameters
Color	White
Material	Fiberglass
Dimensions	Ø63 x 220 mm
Weight	0.58 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AOA-M5G

הפוסט 5G Mobile Omni Antenna –Marine Grade Outdoor Antenna הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Omni Antenna Magnet Base 5dBi SMA Male

design4site — Thu, 07 May 2026 02:49:37 +0000

DirectB2B
4G LTE Outdoor Omni Antenna Magnet Base 5dBi SMA Male

The AOA-4G-5MGN-SMM is an omnidirectional outdoor 4G/LTE antenna from ALFA Network on a magnetic base. Operates in frequency bands 698-960 MHz SISO 1×1 and 1710-2700 MHz SISO 1×1 with 5 dBi gain. Equipped with a waterproof SMA Male connector. Cable length is 3 m.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.96 (GHz) 2 (dBi), 1.71 – 2.17 (GHz) 5 (dBi), 2.4 – 2.7 (GHz) 4 (dBi)
Mobile Antenna Gain	2 dBi, 5 dBi, 4 dBi
Beamwidth	360 °
Polarization	Vertical
Cable Length	3 m
VSWR	< 4
Impedance	50 Ω
Maximum Input Power	50 W
Connectors
RF Connectors	(1) SMA Male
Physical Parameters
Color	Black
Material	ABS Plastic
Ingress Protection Code	IP67
Dimensions	Ø110 × 120 mm
Weight	0.9 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Magnetic

AOA-4G-5MGN-SMM

הפוסט 4G LTE Outdoor Omni Antenna Magnet Base 5dBi SMA Male הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Antenna 5dBi IP67 Female

design4site — Thu, 07 May 2026 02:49:37 +0000

DirectB2B
4G LTE Outdoor Antenna 5dBi IP67 Female

The AOA-4G-5F is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with IP67 enclosure protection. Operates in frequency bands 698-960 MHz SISO 1×1 with 4 dBi gain and 1710-2700 MHz SISO 1×1 with 5 dBi gain. Equipped with an N Female connector.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.960 (GHz) 4 (dBi), 1.710 – 2.700 (GHz) 5 (dBi)
Mobile Antenna Gain	4 dBi, 5 dBi
Beamwidth	35 ° Vertical, 360 ° Horizontal
Polarization	Vertical
VSWR	< 1.5
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Female
Physical Parameters
Color	Gray
Material	Fiberglass
Ingress Protection Code	IP67
Dimensions	Ø20 x 320 mm
Weight	0.25 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AOA-4G-5F

הפוסט 4G LTE Outdoor Antenna 5dBi IP67 Female הופיע לראשונה ב-DirectB2B.
design4site

4G Omni Antenna 2dBi N-Male

design4site — Thu, 07 May 2026 02:48:46 +0000

DirectB2B
4G Omni Antenna 2dBi N-Male

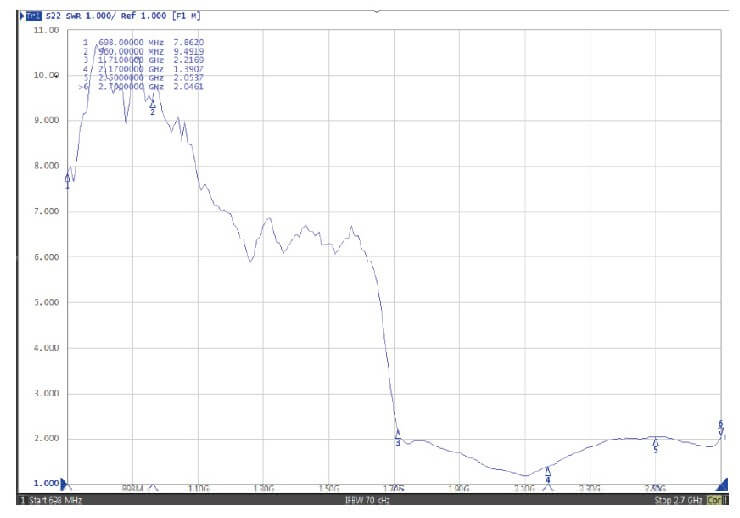

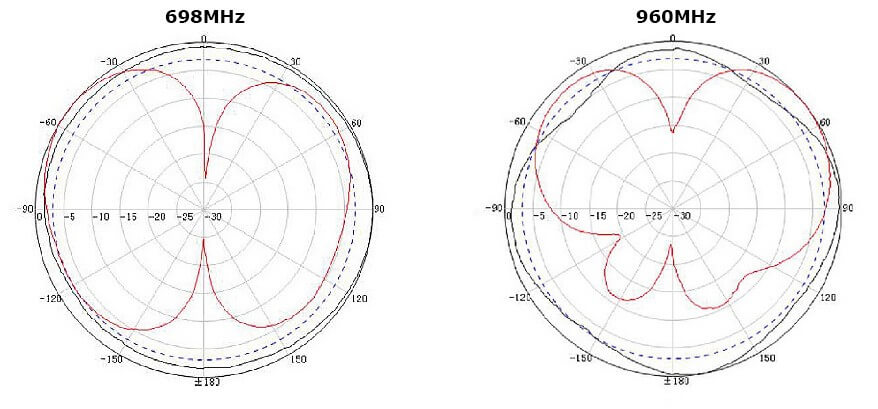

The AOA-4G-2ACM is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use. Operates in frequency bands 698-960 MHz SISO 1×1, 1710-2170 MHz SISO 1×1 and 2500-2700 MHz SISO 1×1 with 2 dBi gain. Equipped with a waterproof N male connector.

מפרט טכני

Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.96 (GHz) 2 (dBi), 1.71 – 2.17 (GHz) 2 (dBi), 2.5 – 2.7 (GHz) 2 (dBi)
Mobile Antenna Gain	2 dBi
Beamwidth	360 °
Impedance	50 Ω
Connectors
RF Connectors	(1) N Male
Physical Parameters
Color	Black
Material	Plastic

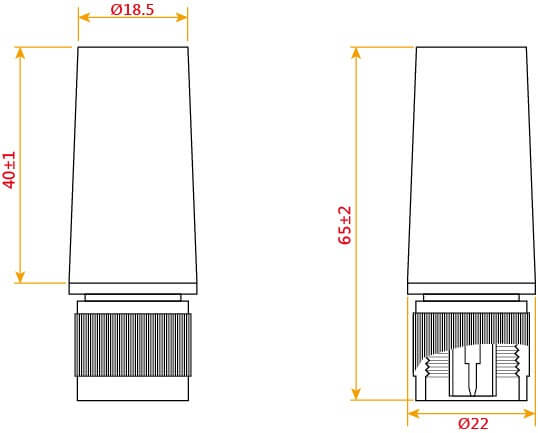

Dimensions	Ø22 x 64 mm
Weight	0.043 kg
Operating Temperature	-40 °C to 85 °C

AOA-4G-2ACM

הפוסט 4G Omni Antenna 2dBi N-Male הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Directional Yagi Antenna 18dBi –High-Gain Long-Range

design4site — Thu, 07 May 2026 02:48:46 +0000

DirectB2B
4G LTE Outdoor Directional Yagi Antenna 18dBi –High-Gain Long-Range

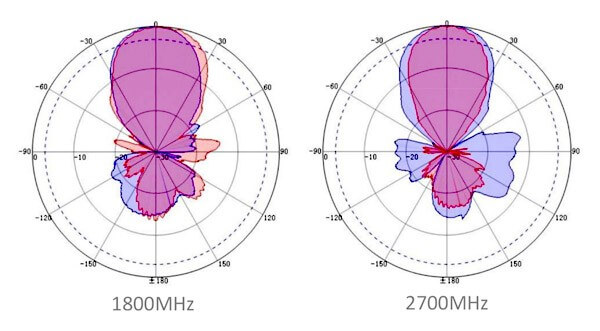

AYA-4G-18 is a directional 4G/LTE Yagi antenna from ALFA Network for outdoor use. It operates in the frequency range 1710-2700 MHz with 18 dBi gain, in vertical or horizontal polarization. Equipped with a waterproof N Male connector.

Note! The cable length given in the specification is approximate and may vary within 3%.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Yagi
Mobile Antenna Frequency Range & Gain	1.71 – 2.7 (GHz) 18 (dBi)
Mobile Antenna Gain	18 dBi
Beamwidth	36 ° Vertical, 40 ° Horizontal
Polarization	Vertical, Horizontal
Cable Length	0.3 m
VSWR	< 1.5
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Male
Physical Parameters
Color	Gray
Material	UV Plastic
Dimensions	Ø80 x 450 mm
Weight	0.8 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AYA-4G-18

הפוסט 4G LTE Outdoor Directional Yagi Antenna 18dBi –High-Gain Long-Range הופיע לראשונה ב-DirectB2B.
design4site

4G LTE Outdoor Omni Antenna 6dBi –Marine Grade High-Gain Antenna

design4site — Thu, 07 May 2026 02:48:46 +0000

DirectB2B
4G LTE Outdoor Omni Antenna 6dBi –Marine Grade High-Gain Antenna

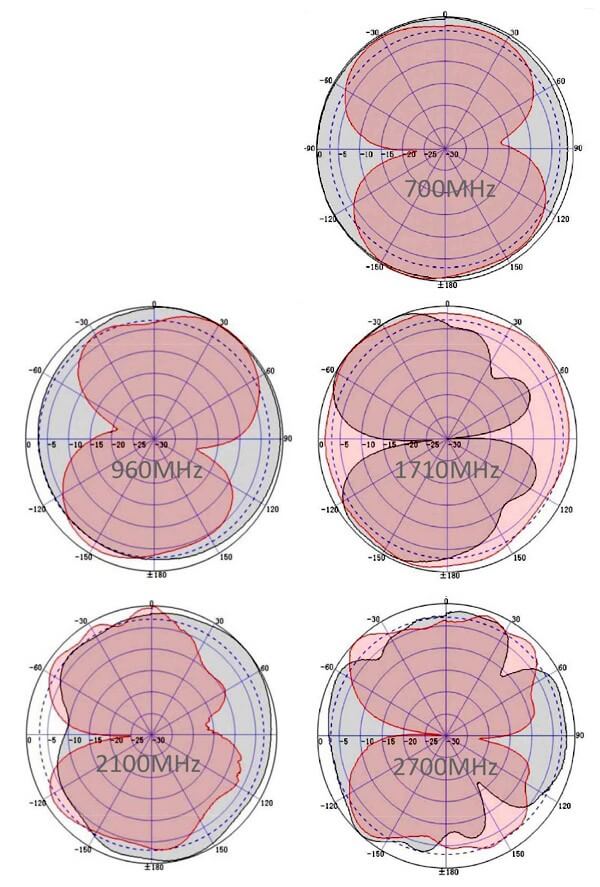

The AOA-M4G is an omnidirectional 4G/LTE antenna from ALFA Network for outdoor use with increased protection against water ingress. Operates in frequency bands 698-960 MHz SISO 1×1 with 4 dBi gain and 1710-2700 MHz SISO 1×1 with 6 dBi gain. Equipped with a waterproof N Female connector.

מפרט טכני

Mobile Network
Mobile Network Generation	4G (LTE)
Antenna
Antenna Design	Omni
Mobile Antenna Frequency Range & Gain	0.698 – 0.96 (GHz) 4 (dBi), 1.71 – 2.7 (GHz) 6 (dBi)
Mobile Antenna Gain	4 dBi, 6 dBi
Beamwidth	18 ° Vertical, 360 ° Horizontal
Polarization	Vertical
VSWR	< 1.5
Impedance	50 Ω
Maximum Input Power	100 W
Connectors
RF Connectors	(1) N Female
Physical Parameters
Color	White
Material	Fiberglass
Ingress Protection Code	Marine Grade
Dimensions	Ø63 x 220 mm
Weight	1.2 kg
Operating Temperature	-40 °C to 70 °C
Environment	Outdoor
Mounting Method	Pole Mount
Rated Wind Velocity	60 m/s

AOA-M4G

הפוסט 4G LTE Outdoor Omni Antenna 6dBi –Marine Grade High-Gain Antenna הופיע לראשונה ב-DirectB2B.
