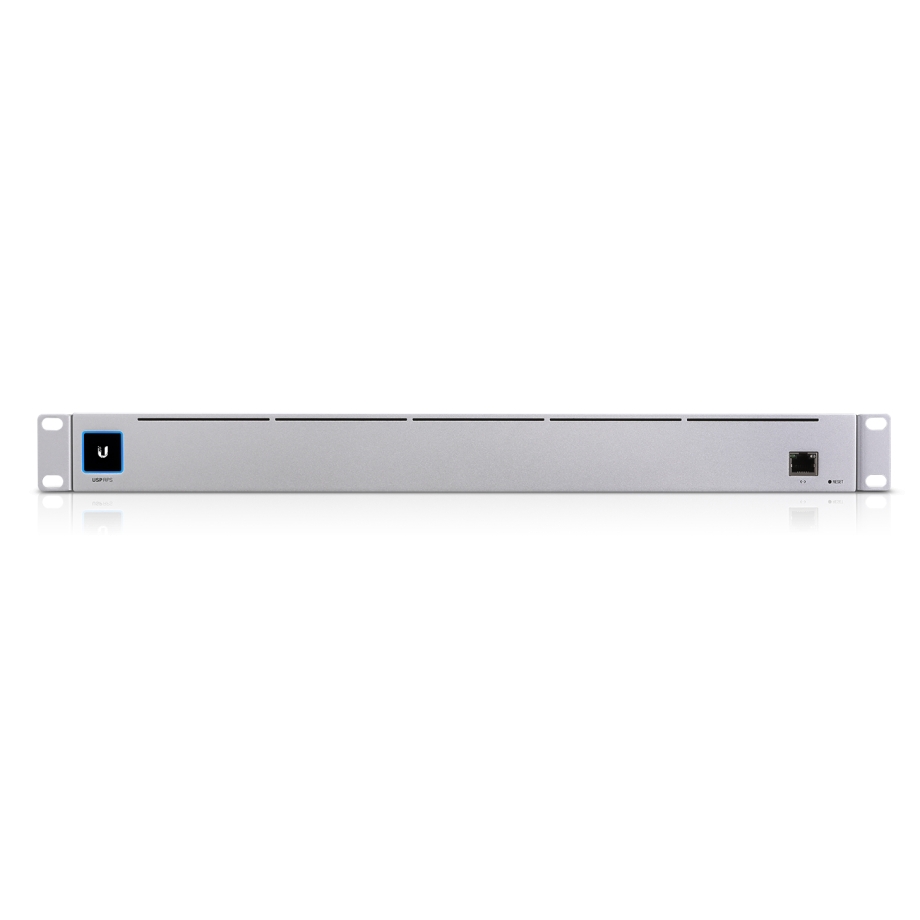

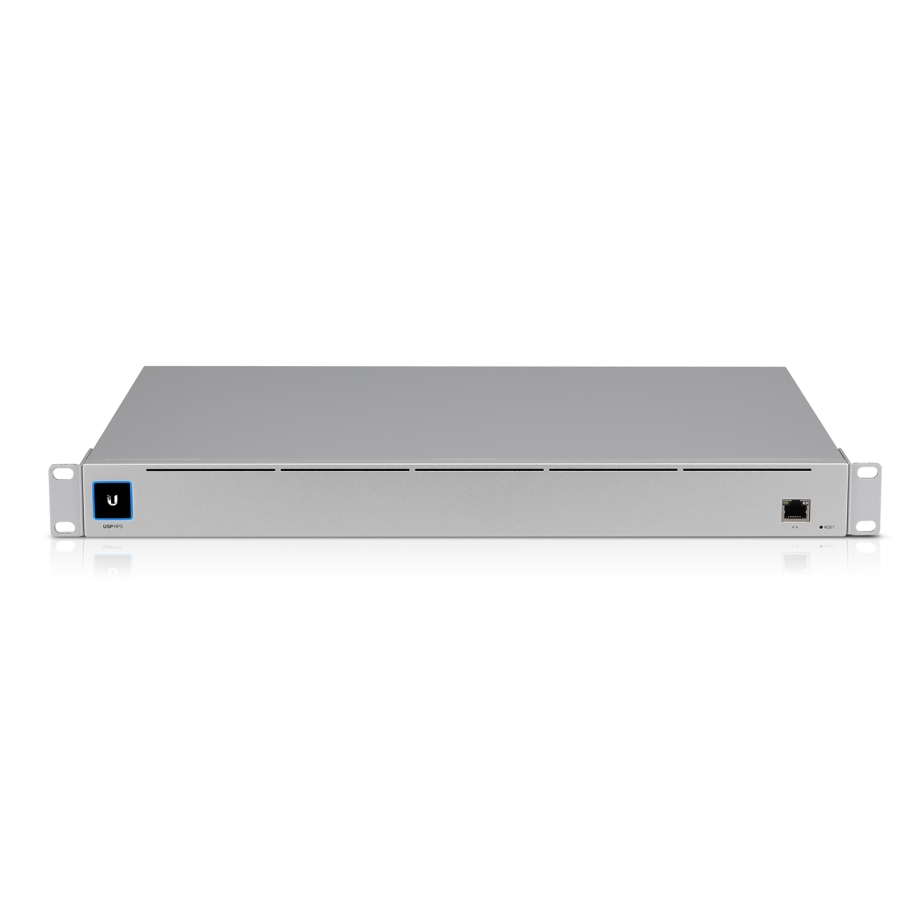

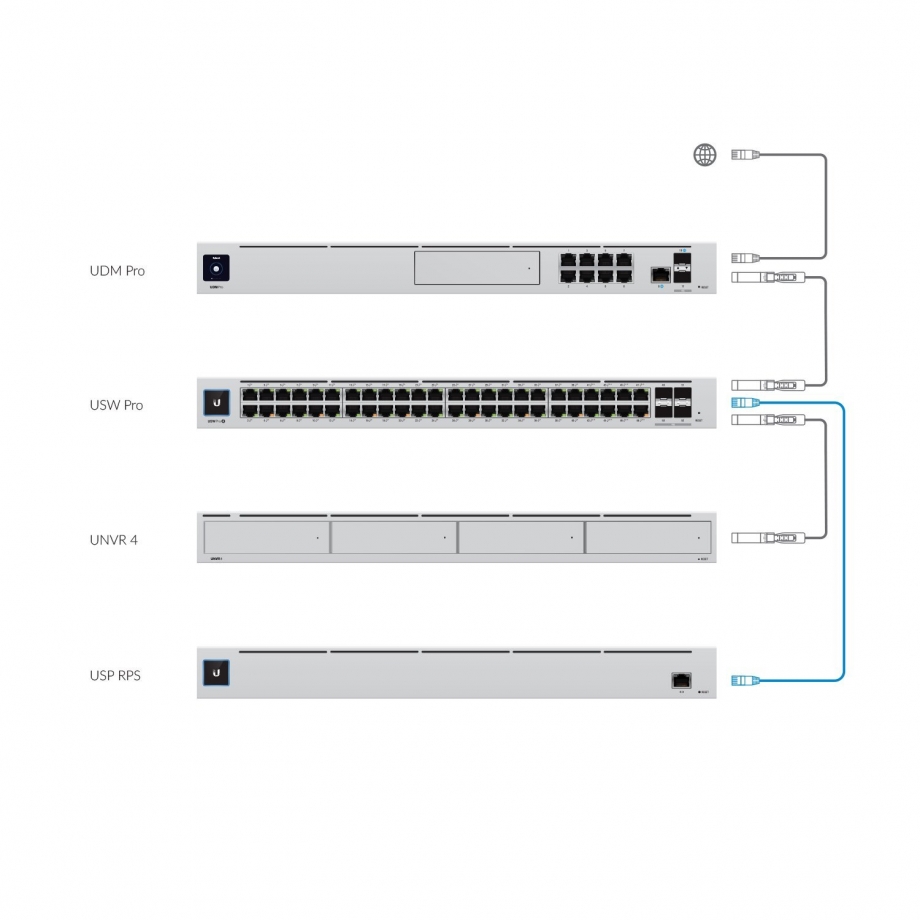

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure.
The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3″ color touchscreen LCM displays system information for convenient monitoring.
Features:

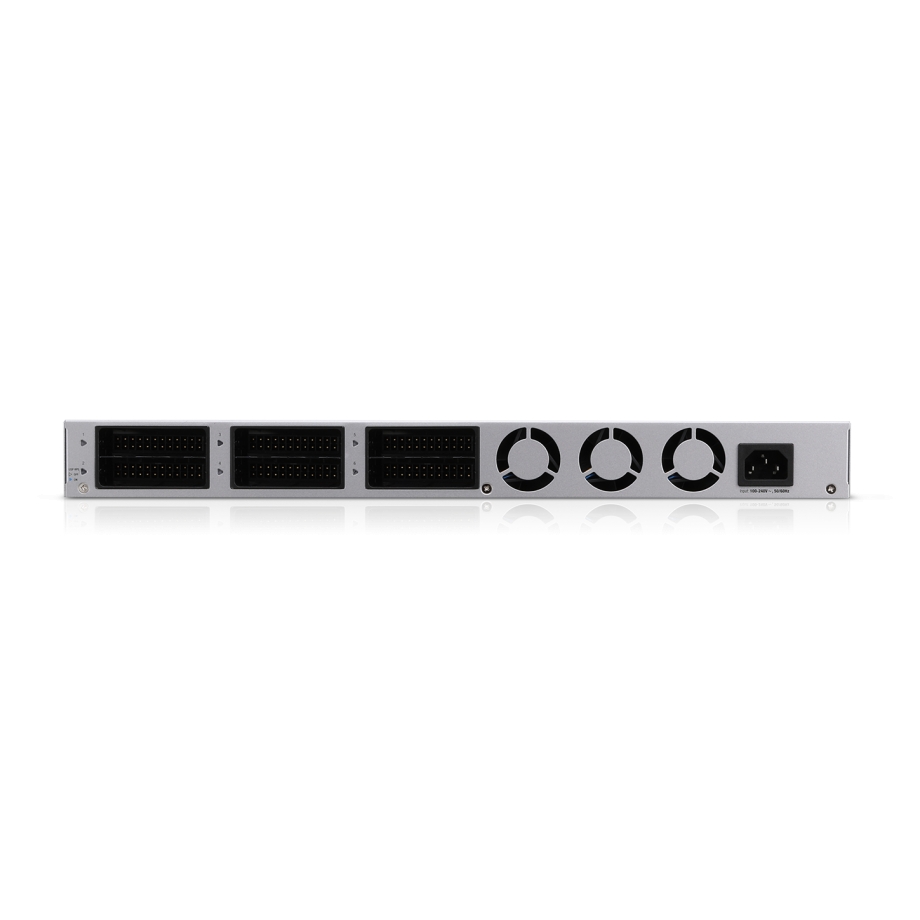

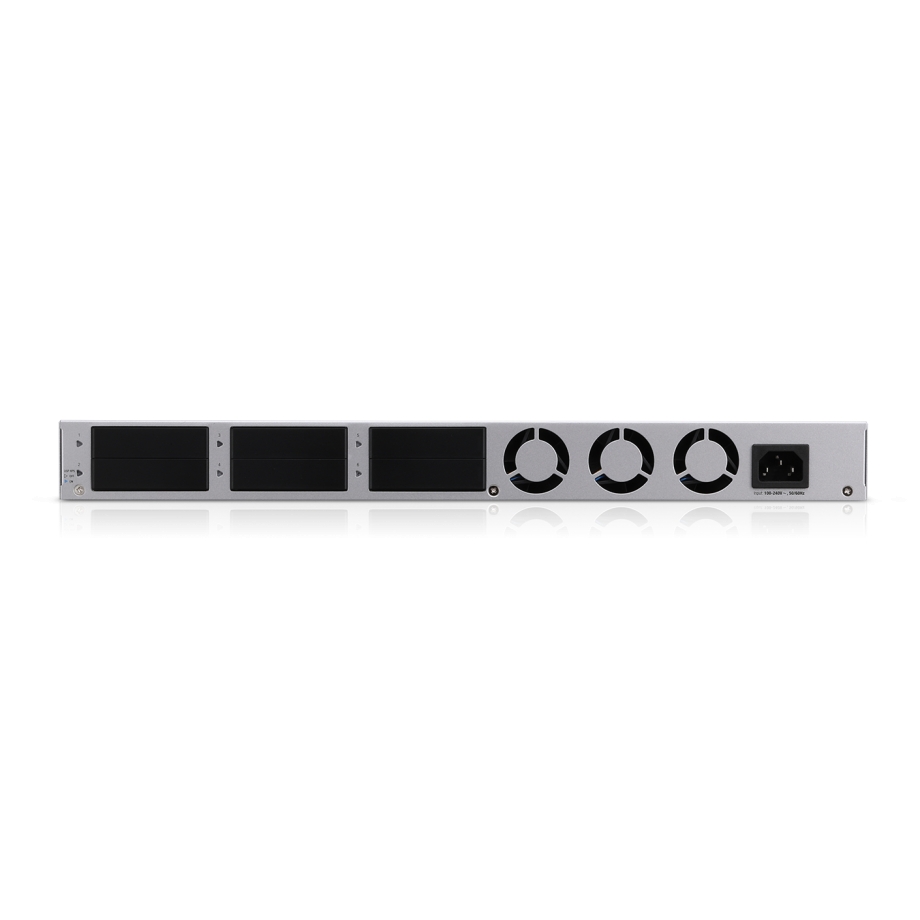

- (6) USP DC output ports
- (1) Ethernet port
- 1U Rackmountable (kit included)
- 1.3″ Touchscreen display with status information
- (1) UniFi SmartPower Cable
- Managed by UniFi Network application version: 5.12.11 or later
מפרט טכני:
| Interfaces |
|---|
| RJ45 Ports | (1) 1 Gbps |
| Power |
|---|
| Supported Input Voltage | 100 – 240 V DC |
| Max Power Consumption | 995 W |
| Physical Parameters |
|---|
| Dimensions | 442.40 x 325.60 x 43.70 mm |
| Weight | 5.59 kg |
| Operating Temperature | -5 °C to 45 °C |
