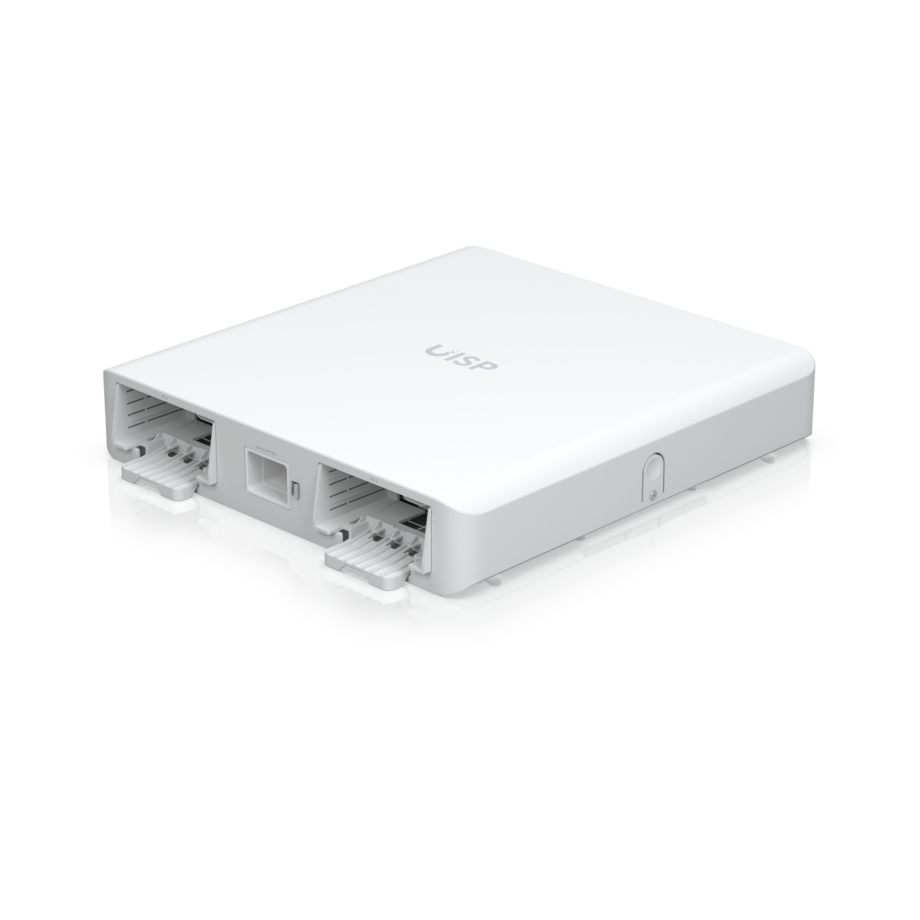

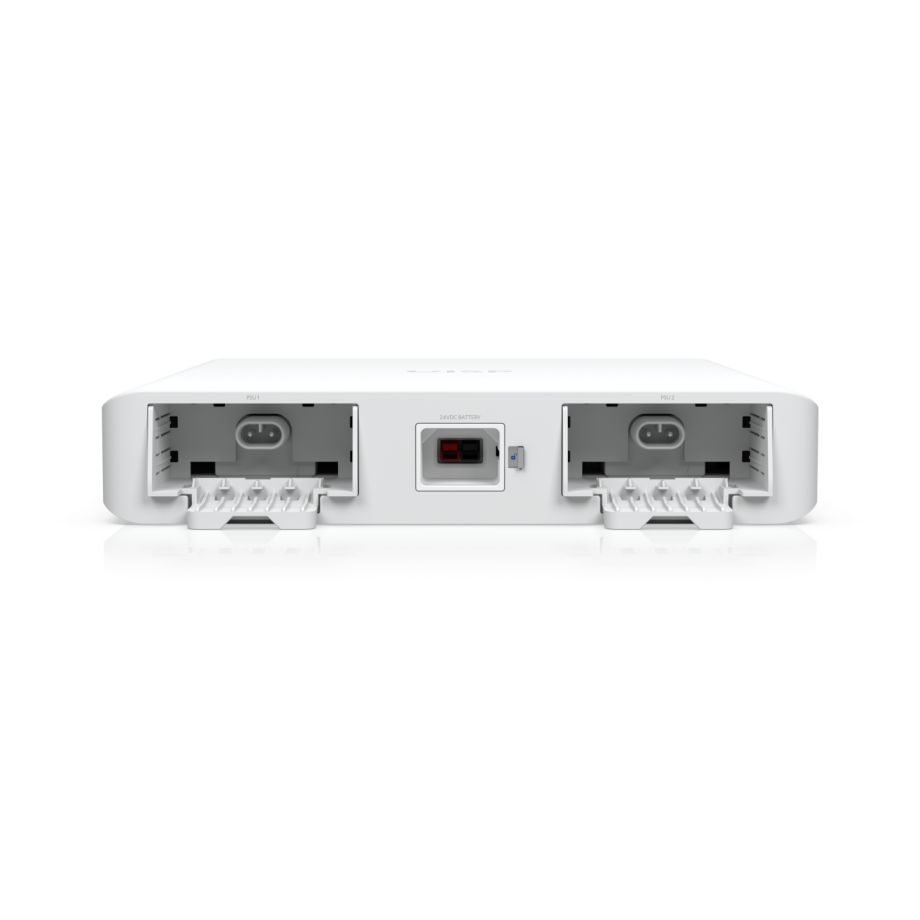

UISP-P is an uninterruptible power system designed for MicroPoP applications. The power system is equipped with two slots for 120W Power TransPort Adapters, DC battery port for 24VDC 8.33A lead acid battery (the battery is not included), the battery bay for rechargeable Li-Ion battery with included battery and the Power TransPort output port. The UISP-P power system provides 27VDC 100W output power using one TransPort adapter and 27VDC 200W output power with two TransPort adapters.

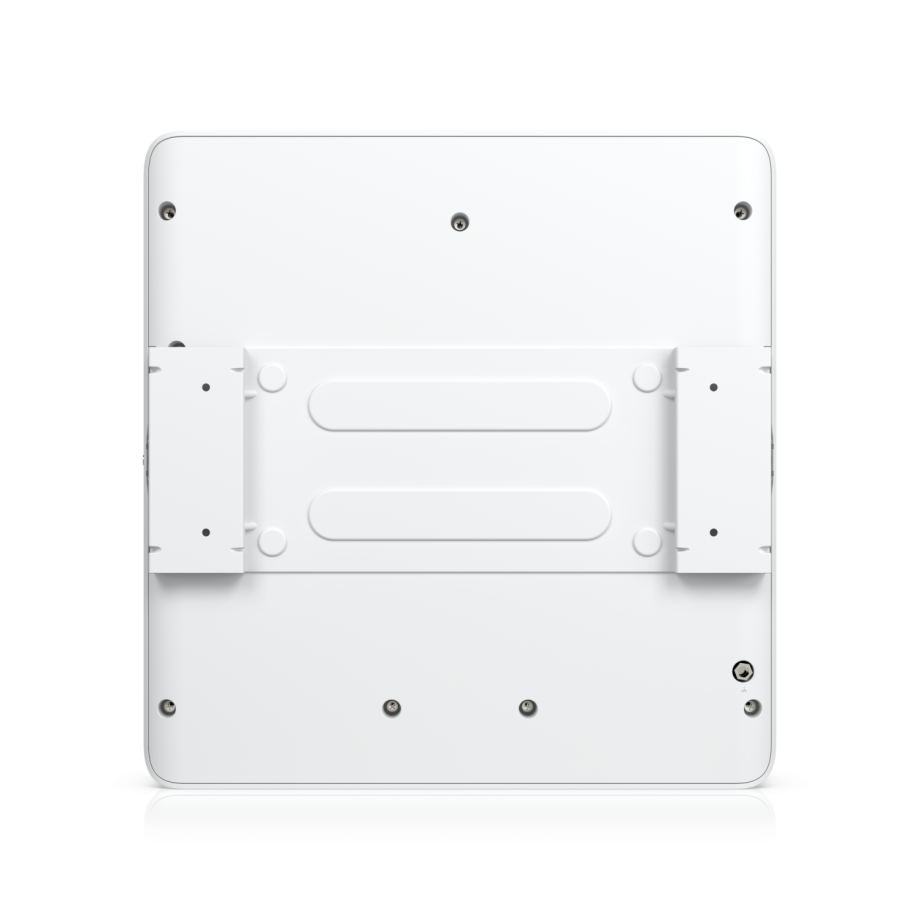

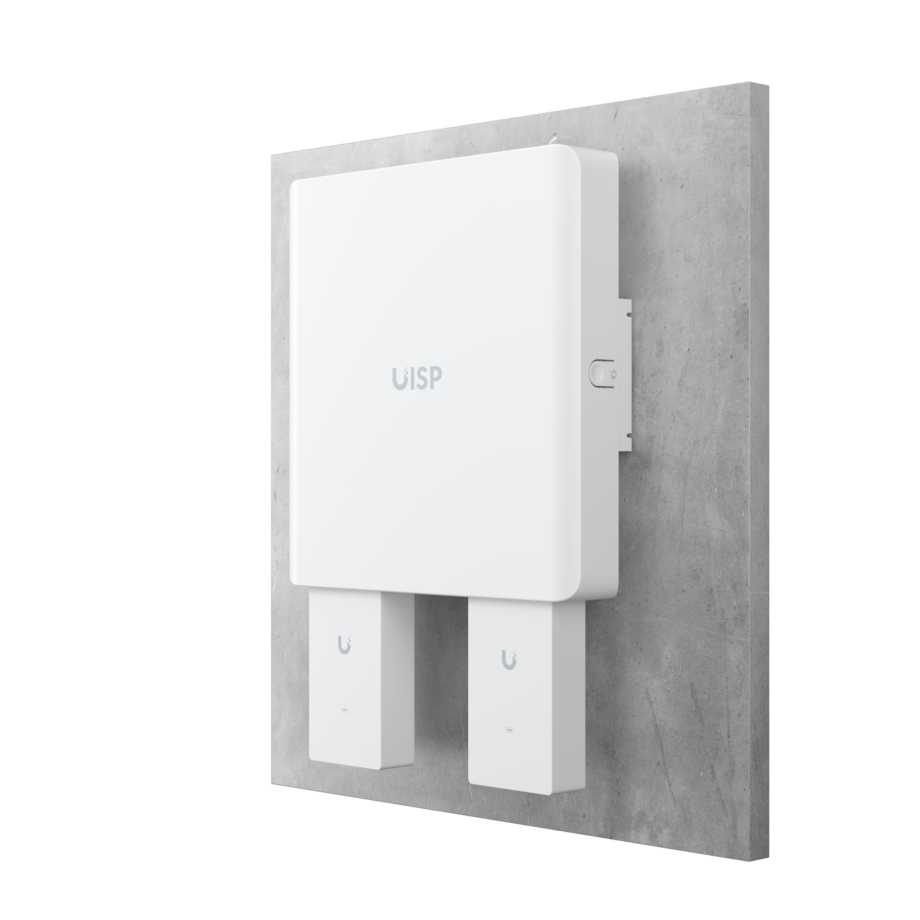

The UISP-P power system is compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro. UISP-P is wall-mountable, the wall mounting kit is included. The power system is managed with the UISP application: Version 1.4.5 and later.
מפרט טכני:
| Interfaces |
|---|
| RJ45 Ports | (1) 100 Mbps |
| Management | Ethernet, Bluetooth |
| Power |
|---|
| Power Method | AC/DC Adapter |
| Max Power Consumption | 3 W |
| Battery Type | Li-Ion |
| PSU / POE adapter | 27 V DC 4.4 A |
| Power Adapter |
|---|
| Output Voltage | 27 V DC |
| Physical Parameters |
|---|
| Color | White |
| Material | Polycarbonate |
| Dimensions | 289 x 280 x 52 mm |
| Weight | 1.4 kg |
| Operating Temperature | -5 °C to 40 °C |
| Environment | Indoor |
| Mounting Method | Wall Mount |
| Package Contains |
|---|
| External Power Supply | Not Included |
