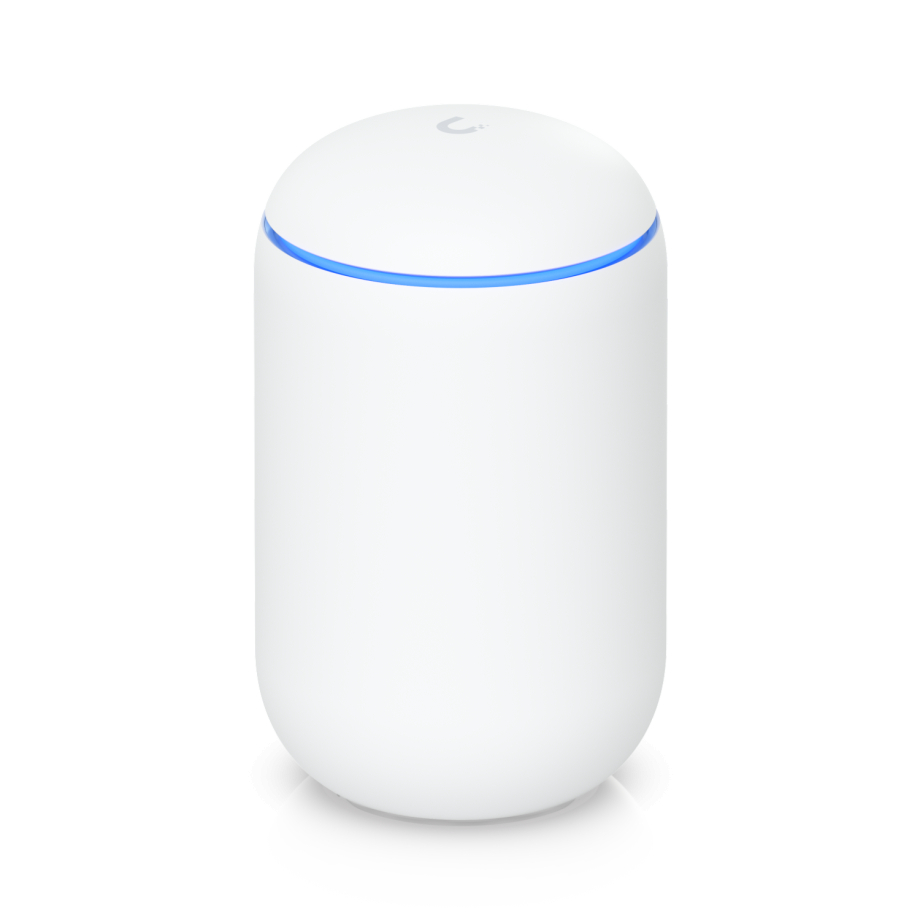

Powered by a fast 1.7 GHz quad‑core processor, the UDM combines multiple functions into a single elegant device. The Dream Machine is an easy-to-use UniFi OS console with a built-in, high-performance Wi-Fi access point.
UniFi Dream Machine (UDM) is the easiest way to introduce UniFi to homes and businesses. The UDM includes everything you need for a small-scale wired or Wi-Fi network. It’s easy to use and still offers all the benefits of UniFi for homes and businesses.
Features:
- High‐Performance Dual Band 802.11ac 4×4 Wave 2 AP
- Managed 4-Port Gigabit Switchy
- Advanced Security Gateway with IDS/IPS and DPI
- Pre-installed UniFi Network application
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor
The UDM is the ideal first UniFi device. It’s easy to use and still offers all the benefits of UniFi for homes and businesses. Easily expand the UDM by adding more UniFi Switches or APs while managing the network with the integrated controller. The UniFi Network application and UniFi Cloud provide remote access to the device from anywhere. The entire network can be kept updated and safe with automated software updates, which are free of charge.
Centralized management software featuring a graphical user interface offers easy setup and convenient control. The UniFi Network Application can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
מפרט טכני:
| Wireless Network |
|---|
| Generation | WiFi 5 |
| Standards | 802.11n/ac |
| MIMO | 2.4GHz 2×2, 5GHz 4×4 |
| Frequency | 2.4GHz, 5GHz |
| 2.4GHz Radio Rate | 300 Mbps |
| 5GHz Radio Rate | 1.7 Gbps |
| Antenna |
|---|
| Antenna Design | Omni |
| Wireless Antenna Frequency Range & Gain | 2.4 – 2.4 (GHz) 3 (dBi), 5 – 5 (GHz) 4.5 (dBi) |
| Interfaces |
|---|

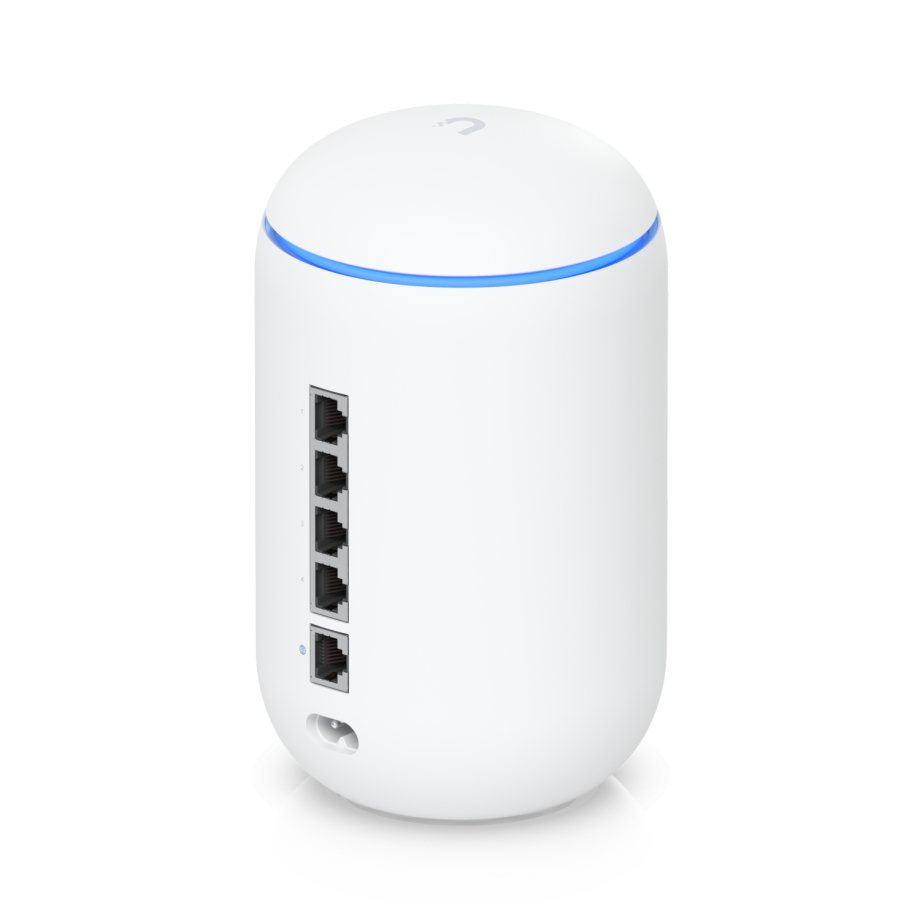

| RJ45 Ports | (5) 1 Gbps |
| System Specification |
|---|
| Chipset | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| RAM | 2 GB |
| Storage Memory | 16 GB |
| Power |
|---|
| Power Method | AC/DC Adapter |
| Power Supply | Internal PSU |
| Supported Input Voltage | 100 – 240 V AC |
| Max Power Consumption | 26 W |
| Physical Parameters |
|---|
| Color | White |
| Dimensions | Ø110 x 184.2 mm |
| Weight | 1.05 kg |
| Operating Temperature | -10 °C to 45 °C |
| Environment | Indoor |
| Mounting Method | Tabletop |
| Form Factor | Desktop |
