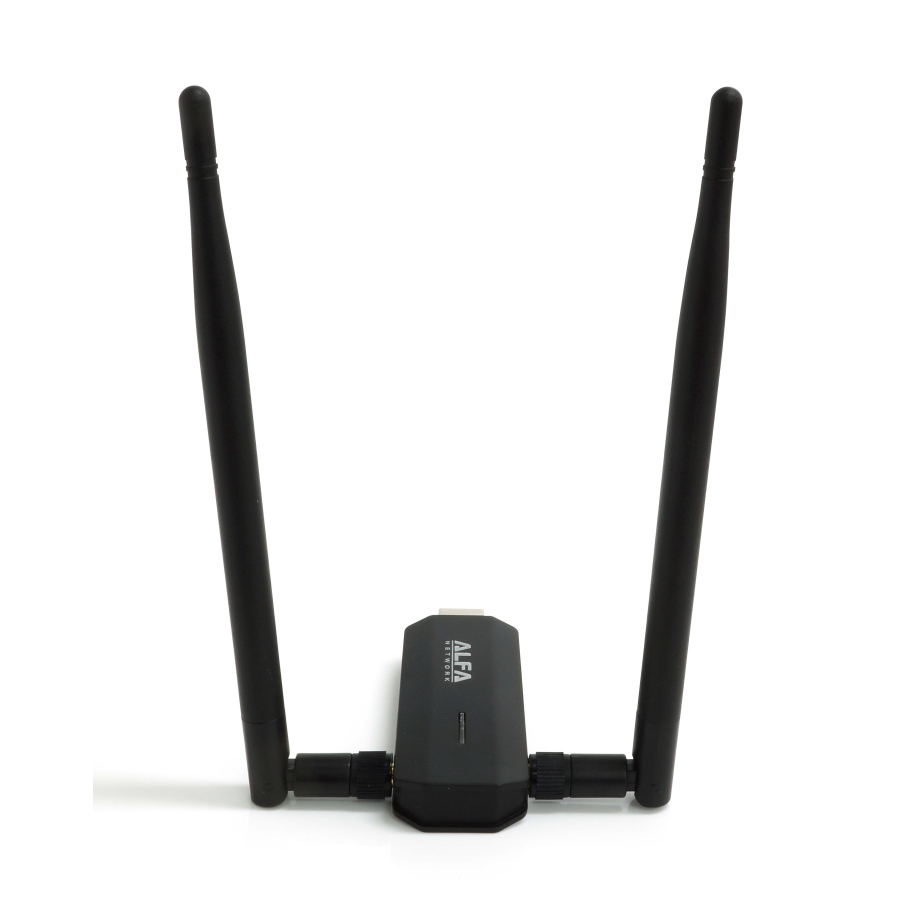

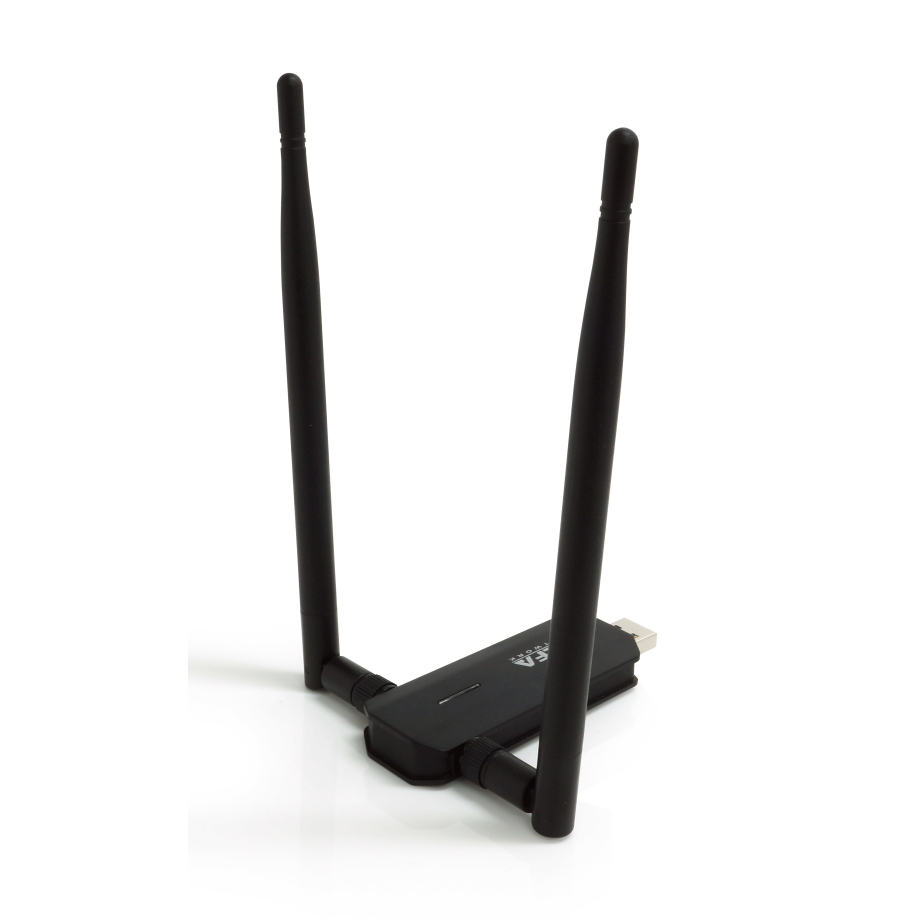

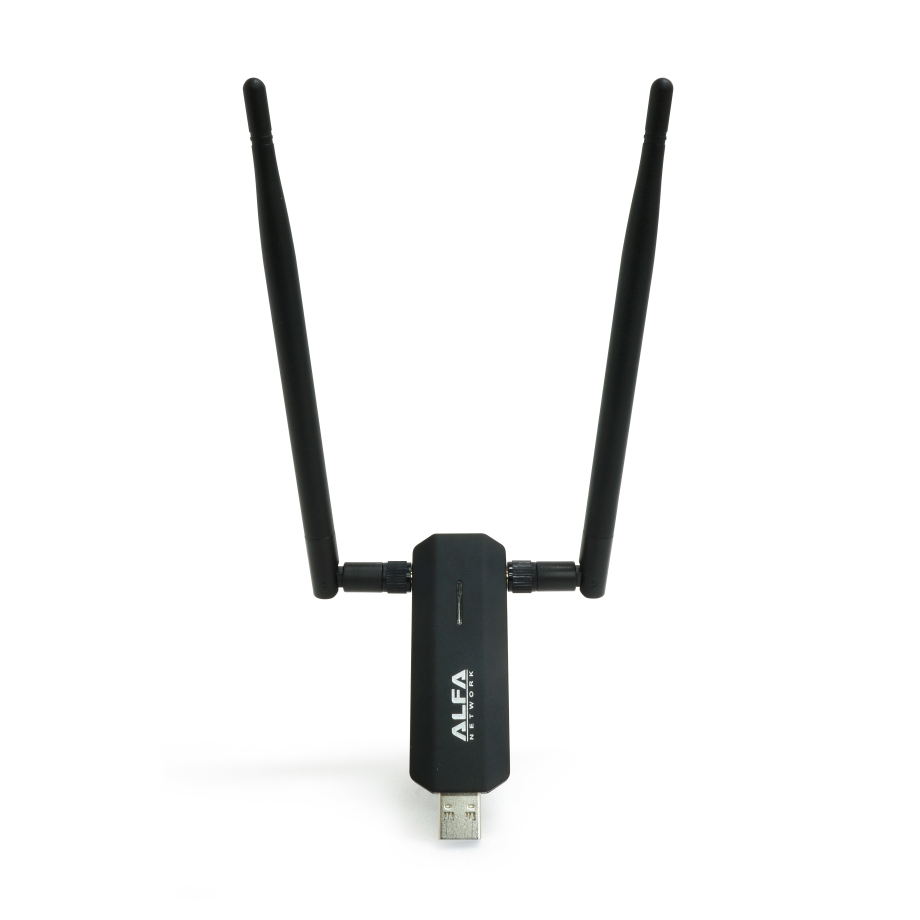

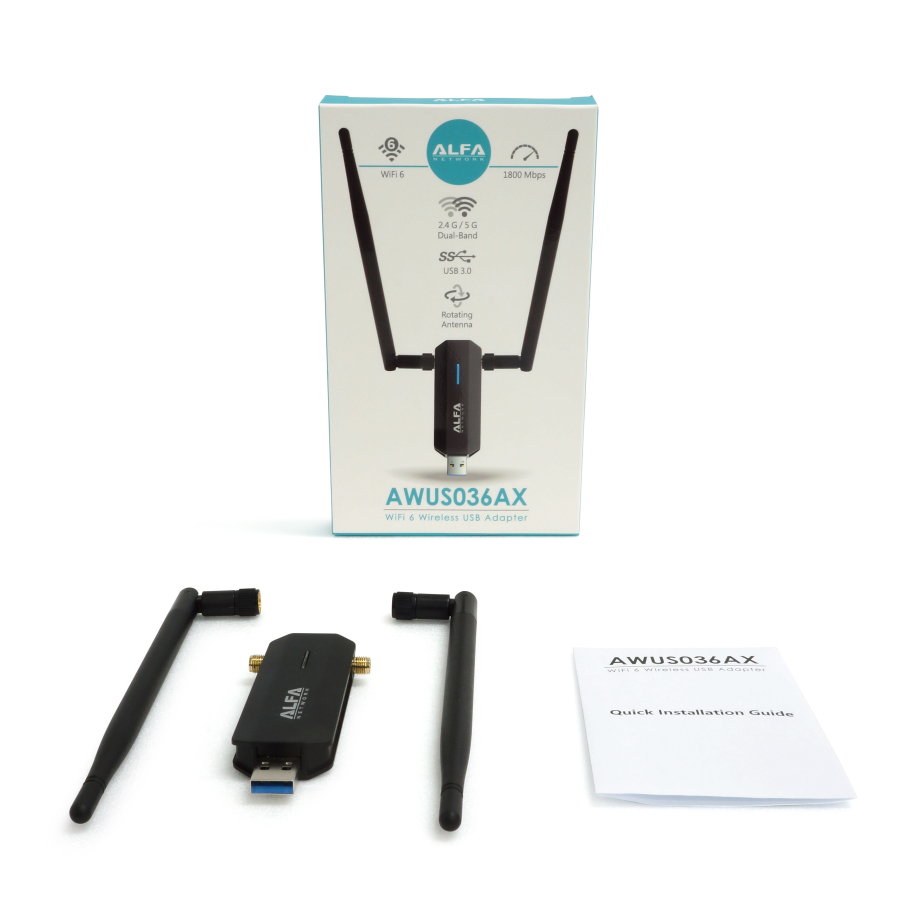

AWUS036AX is the WiFi 6 (802.11ax) 2×2 dual-band 2.4 GHz and 5 GHz USB adapter. The AWUS036AX USB adapter incorporates highly integrated Realtek™ RTL8832BU WLAN chipset, with support for 802.11ax standard. It works in two frequency bands 2.4 GHz / 5 GHz on a 802.11ax standard using 2×2 MIMO technology. The USB adapter is backward compatible with standard 802.11a/b/g/n/ac and is equipped with two RP-SMA female connectors including dual-band 5 dBi dipole omni antennas.
Key features:
- RTL8832BU WiFi 6 chipset
- USB-A connector support USB 3.2 GEN 1
- RP-SMA external antenna connector
- High-gain dual-band 2.4 GHz +5 GHz detachable dipole antenna
- LED indicator
מפרט טכני:
| Wireless Network |
|---|
| Generation | WiFi 6 |
| Standards | 802.11n/ac/ax |
| Frequency | 2.4GHz, 5GHz |
| 2.4GHz Radio Rate | 573 Mbps |
| 5GHz Radio Rate | 1.2 Gbps |
| Antenna |
|---|
| Antenna Design | Omni |
| Connectors |
|---|
| RF Connectors | (2) RP-SMA Female |
| Interfaces |
|---|
| Management | Wi-Fi |
| System Specification |
|---|
| Chipset | Realtek™ RTL8832BU |
| Physical Parameters |
|---|
| Color | Black |
| Material | Plastic |
| Dimensions | 87.4 x 28.5 x 12 mm |
| Operating Temperature | -20 °C to 70 °C |
| Environment | Indoor |
| Form Factor | Desktop |
