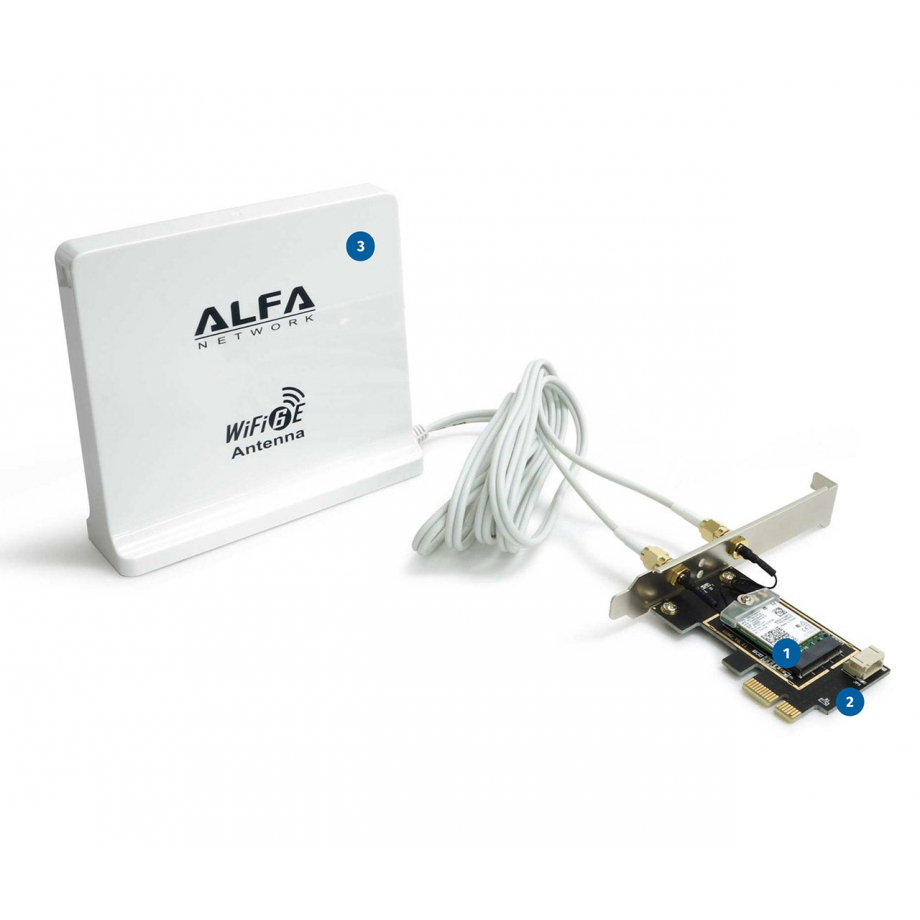

The AIT-AX210-EZ is a WiFi 6E and Bluetooth 5 PCIe card based on the Intel AX210 module, designed for desktop PCs with a PCIe ×1 interface. It is equipped with ARS-WiFi6E-M2 tri-band panel 4dBi antenna with 2m long LMR-100 RF cable.
AIT-AX210-EZ supports the latest WiFi 6E (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.2, is backward compatible and operates in 2.4, 5 and 6 GHz bands.
AIT-AX210-EZ card has PCIe ×1 interface, which allows using this set in any desktop PC equipped with PCIe ×1, ×4, ×8 or ×16 slot.
מפרט טכני:
| Wireless Network |
|---|
| Generation | WiFi 6 |
| Standards | 802.11n/ac/ax |
| Frequency | 2.4GHz, 5GHz, 6GHz |
| 5GHz Radio Rate | 2.4 Gbps |
| Antenna |
|---|
| Antenna Design | Panel |
| Cable Length | 2 m |
| Connectors |
|---|
| RF Connectors | (2) RP-SMA Female |
| Interfaces |
|---|
| Management | Wi-Fi, Bluetooth |
| PCI Express | (1) M.2 PCIe Slot |
| Bluetooth | 5.2 |
| System Specification |
|---|
| Chipset | Intel AX210NGW |
