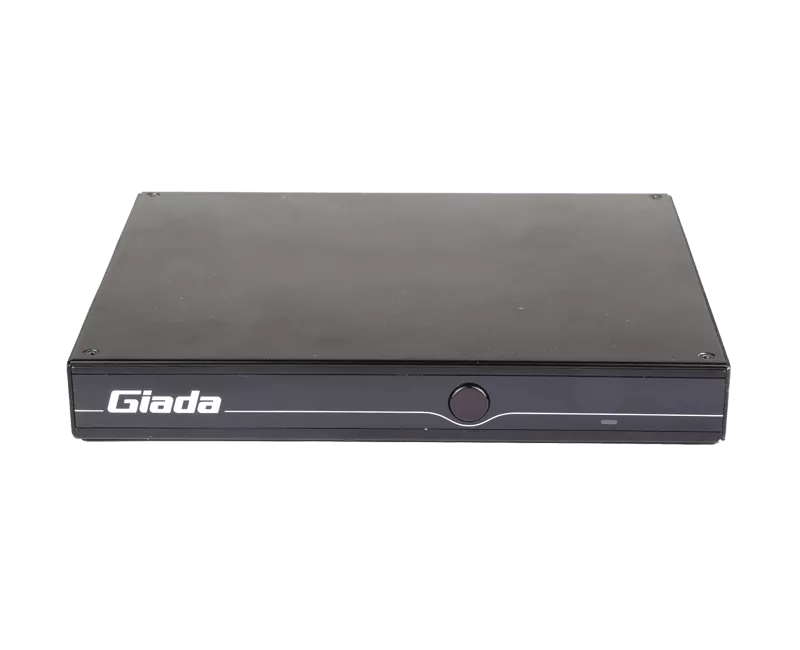

מחשב מיני ביצועים גבוהים – Giada | D68 | High Performence MiniPC

תכונות: מחשב מיני ביצועים גבוהים – Giada | D68 | High Performence MiniPC

מאפיינים טכניים

CPU	Intel^®Core™ i3-8145U
Frequency	1.60GHz (Up to 3.90GHz)
BIOS	AMI Source Code
Chipset	SOC
Memory	Type	DDR4-2400MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel^® UHD Graphics 620
	Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1

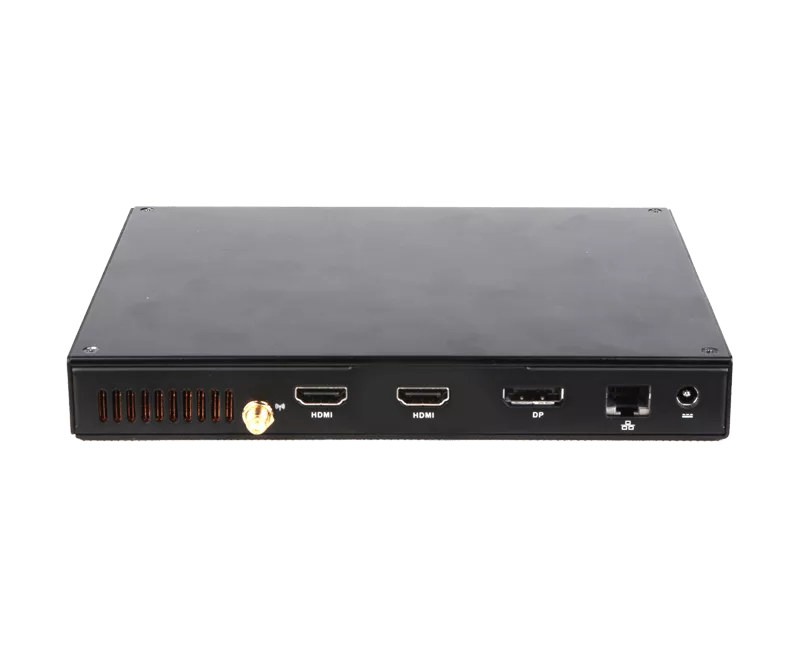

	DP	1 x DP (Max.4096 x 2304 @60Hz)
	HDMI	1 x HDMI (Max.4096×2304 @60Hz)
	HDMI	1 x HDMI (Max.4096×2304 @24Hz)
Network	Controller	Realtek 8111H Gigabit Ethernet
	Interface	1 x RJ45
I/O	USB	5 x USB 3.1
	Serial Port	1 x RS232
	Audio	1 x AUDIO-OUT, 1 x MIC-IN
	Mini-PCIe	1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
	M.2(2230)	1 x M.2(2230) for WiFi
	SIM	1 x SIM Slot
Storage	mSATA	1 x Full-size mSATA（Optional）
	M.2	1 x M.2(2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	Remote Control	By IR Controller for Power On
	RTC	Set Up Independently Every day, A Week as a Cycle
	Wake On Lan	Yes
Operation System	Windows	Windows 10（64-Bit）
	Linux	Supported
Power	Power Type	DC-IN
	Input Voltage	19V / 3.42A
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
	Construction	Metal
	Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

מוצרים נוספים:

קטגוריה: מחשבי מיני PC

מוצרי יצרן נוספים: Giada

אחריות למוצר:
12 חודשים דיירקט גרופ לעסקים

קישור לאתר יצרן:

משלוחים חינם לכל הארץ בקניה מעל 1,500 ש״ח
