QuMax XR LTE High Band for RUT240/950/955/X09/X11

מק"ט: AXRLH קטגוריה: תגית:

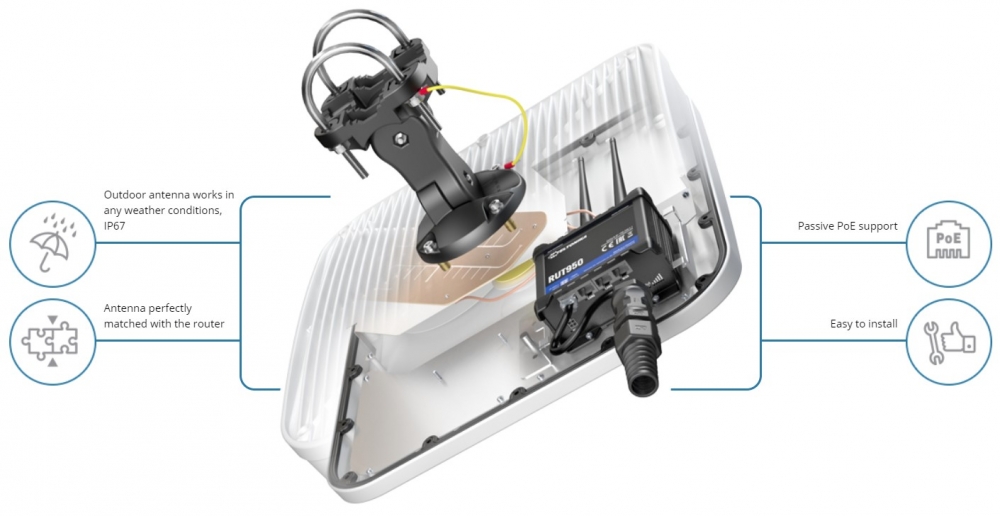

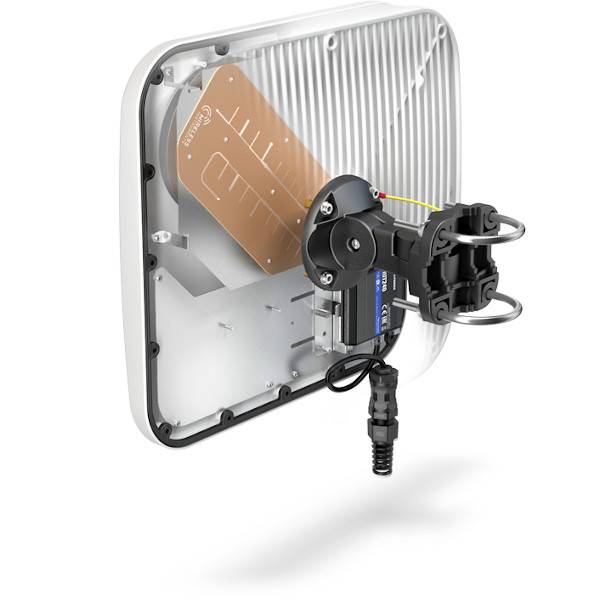

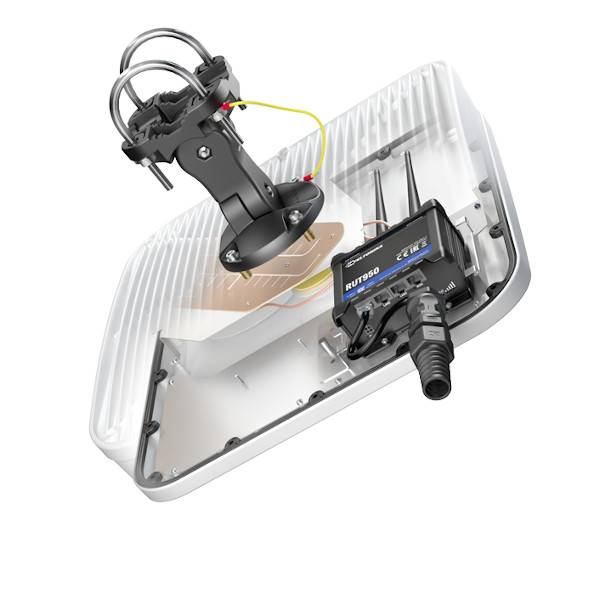

QuMAX eXtra Range LTE offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. This device is designed to have Teltonika RUT240/950/955/X09/X11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. There is also space for mounting internal genuine Teltonika GPS and Wi-Fi antennas inside the antenna enclosure. QuMax XR High Band version offer gain up to 12 dBi in LTE bands: 7, 15, 16, 30, 38, 40, 41, 53, 69 and support many other LTE bands (details in specification table).
/images/catalogue/description/251/qumaxxrpic-5f4cdfd9a8f68.jpeg

מפרט טכני:

Antenna
Antenna Design Panel
Mobile Antenna Frequency Range & Gain 0.694 – 0.694 (GHz) 6 (dBi), 2.3 – 2.7 (GHz) 13 (dBi)
Mobile Antenna Gain 6 dBi, 13 dBi
Polarization Dual Slant
VSWR < 2
Impedance 50 Ω
Physical Parameters
Color White
Material Aluminium, ABS Plastic, Fiberglass, Polytetrafluoroethylene
Ingress Protection Code IP67
Dimensions 392 x 392 x 99 mm
Weight 3.72 kg
Operating Temperature -40 °C to 75 °C
Environment Outdoor
Mounting Method Pole Mount
