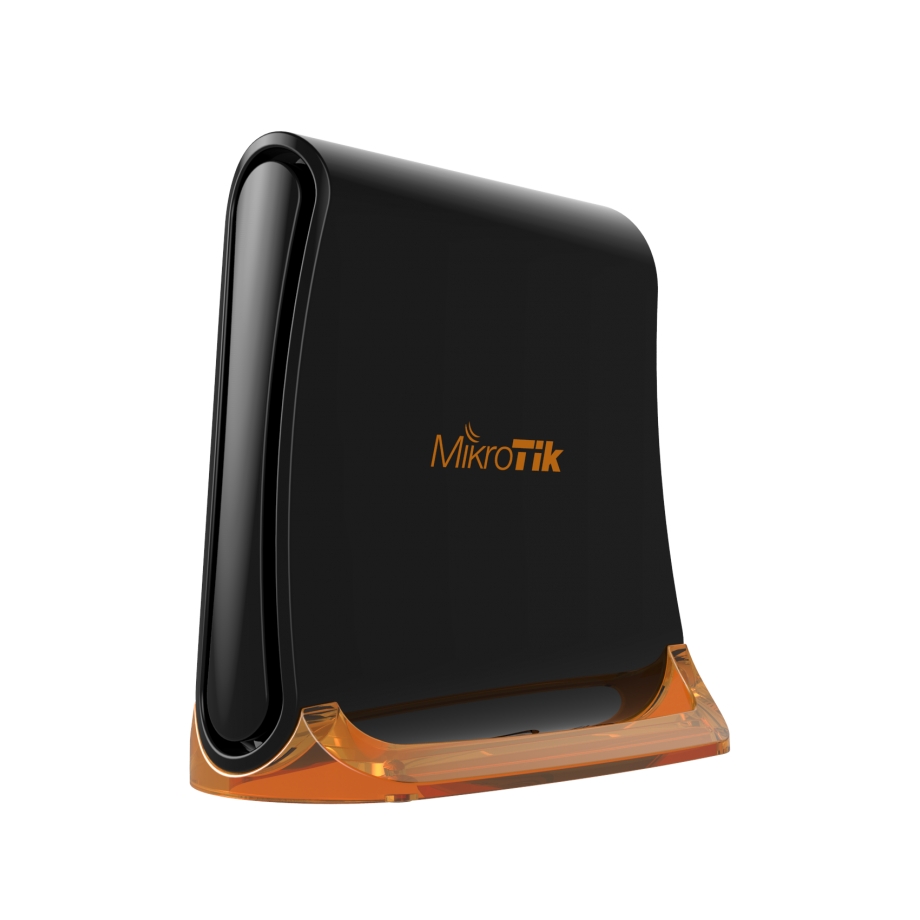

The hAP mini is a small 2GHz wireless access point for home or small offices. It has three ports, which are configured as one Internet port and two LAN ports, but can be reconfigured as desired, using the powerful RouterOS configuration options.
The unit is powered by microUSB and measures only 8 cm tall. Even with its small size, the hAP mini is still quite powerful, as it uses the QCA9533 CPU, just like the bigger units in the widely successful hAP series.

The device has an omnidirectional antenna built-in, and does not have a strict limitation on number of connected clients. It works in 2.4 GHz and supports 802.11b/g/n standards.

The powerful 650 MHz CPU gives you full access to the wide variety of features provided by the versatile RouterOS operating system, but if all you want is a simple access point – it is already configured out of the box. You simply need to open its web configuration page and set a password for it.
מפרט טכני:
| Wireless Network |
|---|
| Generation | WiFi 4 |
| Standards | 802.11n |
| MIMO | 2.4GHz 2×2 |
| Frequency | 2.4GHz |
| 2.4GHz Radio Rate | 300 Mbps |
| Antenna |
|---|
| Antenna Design | Omni |
| Wireless Antenna Frequency Range & Gain | 2.4 – 2.4 (GHz) 1.5 (dBi) |
| Interfaces |
|---|
| RJ45 Ports | (3) 100 Mbps |
| Management | Ethernet, Wi-Fi |
| System Specification |
|---|
| Chipset | QCA9533, 1 core, 650 MHz |
| RAM | 32 MB |
| Storage Memory | 16 MB |
| Power |
|---|
| Power Method | AC/DC Adapter |
| Power Supply | External AC/DC Adapter |
| Supported Input Voltage | 5 – 5 V DC |
| Max Power Consumption | 3.5 W |
| Power Connector | MicroUSB |
| PSU / POE adapter | 5 V DC 1 A |
| Physical Parameters |
|---|
| Ingress Protection Code | IP20 |
| Dimensions | 81 x 78 x 48 mm |
| Operating Temperature | -20 °C to 70 °C |
| Environment | Indoor |
| Mounting Method | Tabletop |
| Form Factor | Desktop |
| Package Contains |
|---|
| External Power Supply | Included |
| Software |
|---|
| MikroTik | RouterOS Level 4 |
