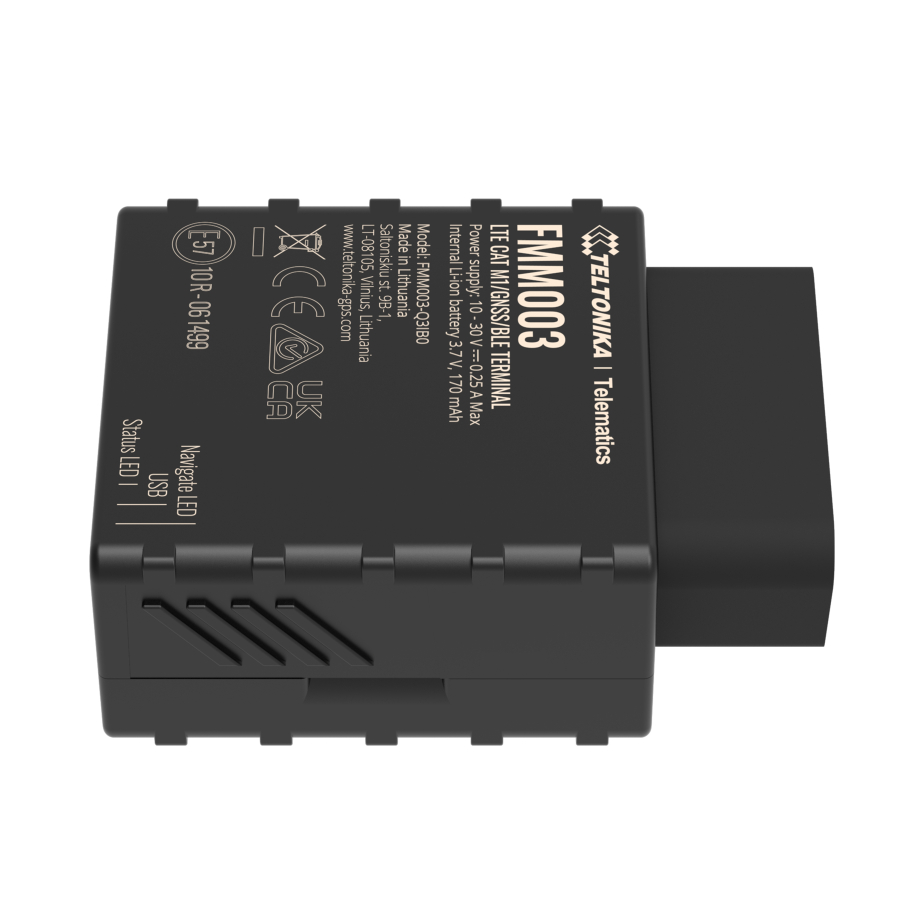

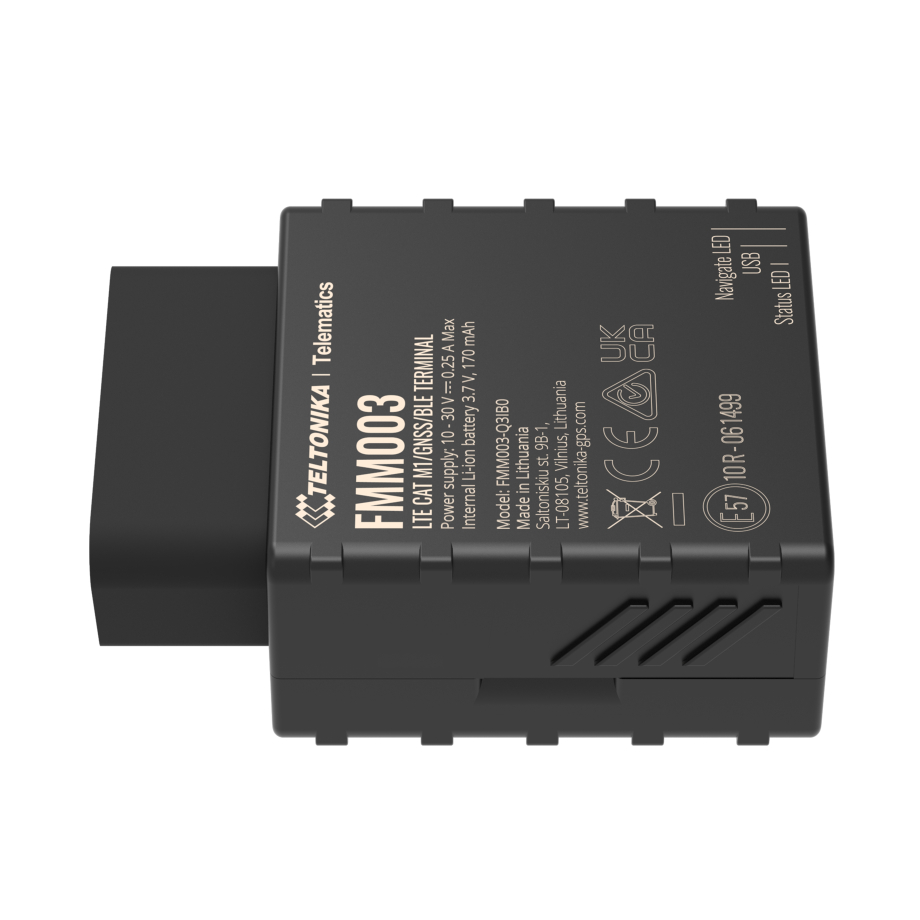

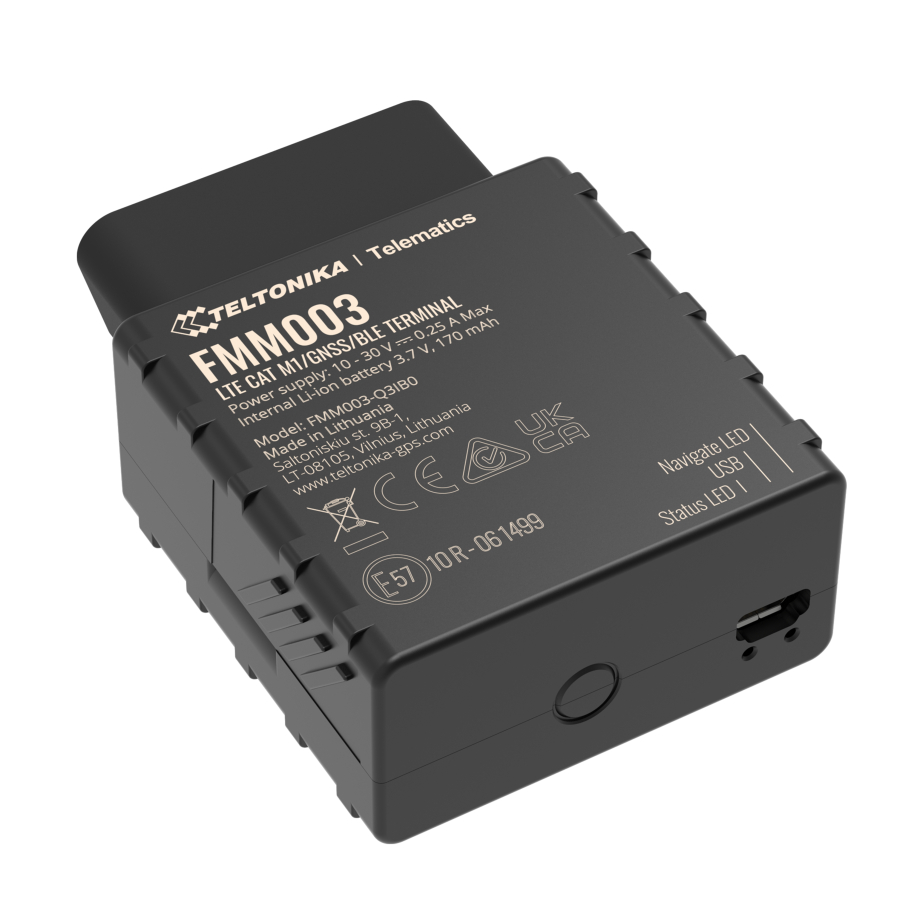

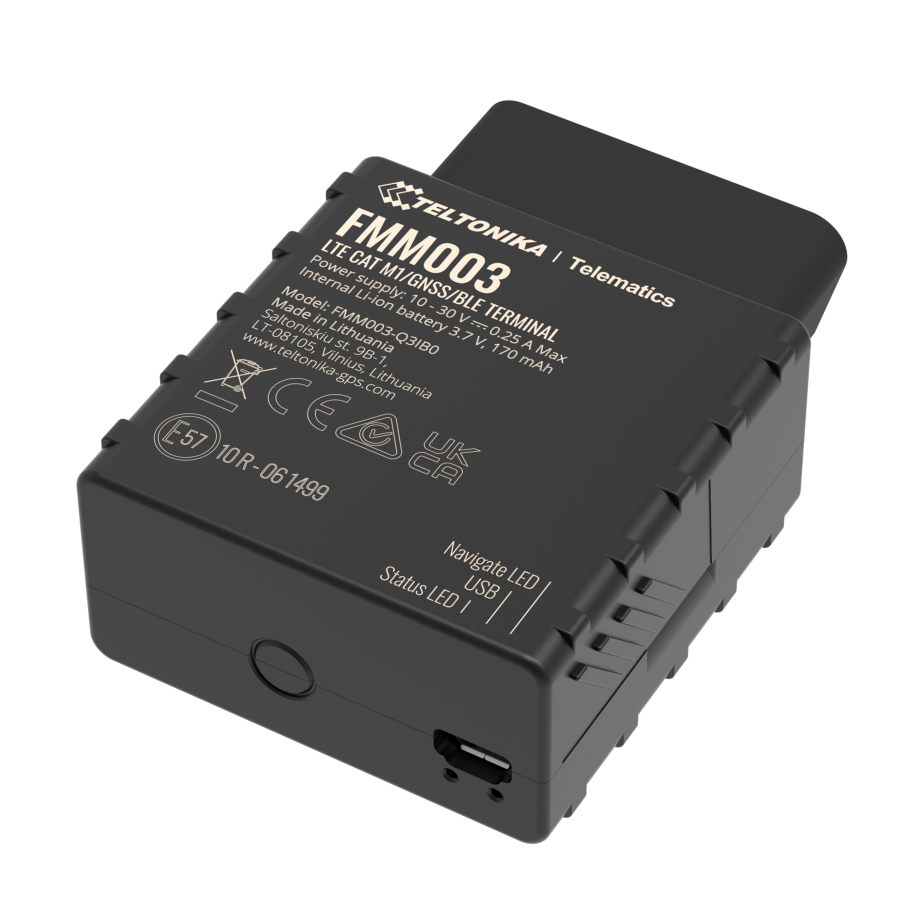

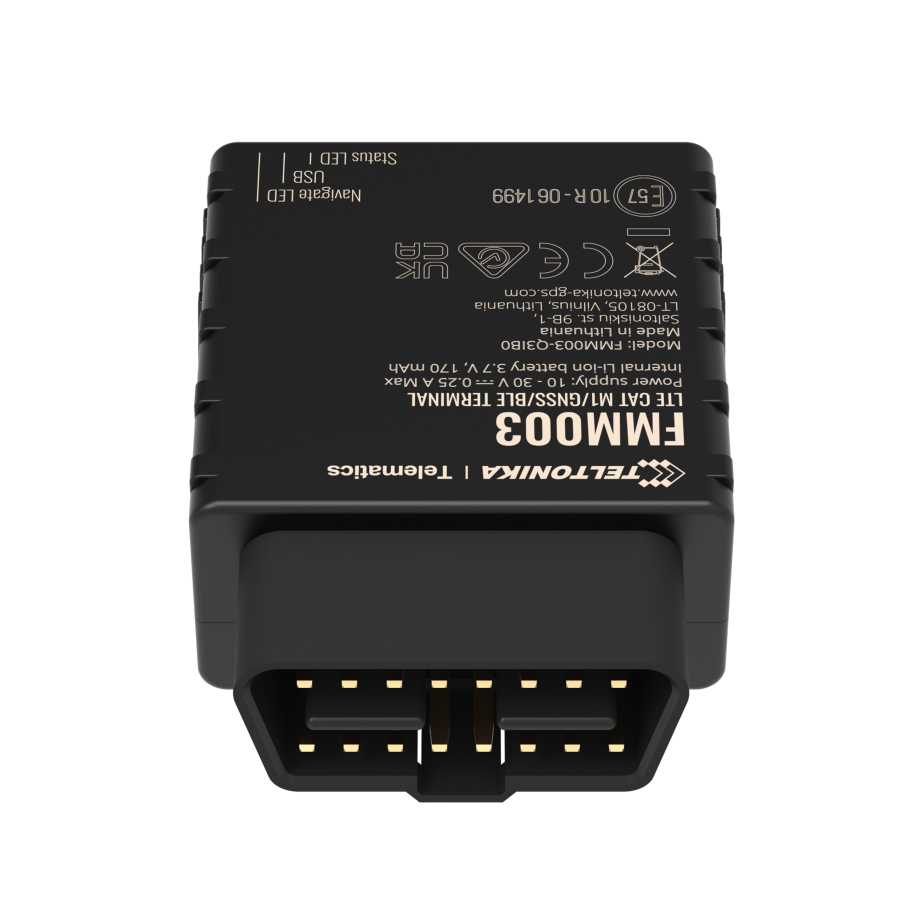

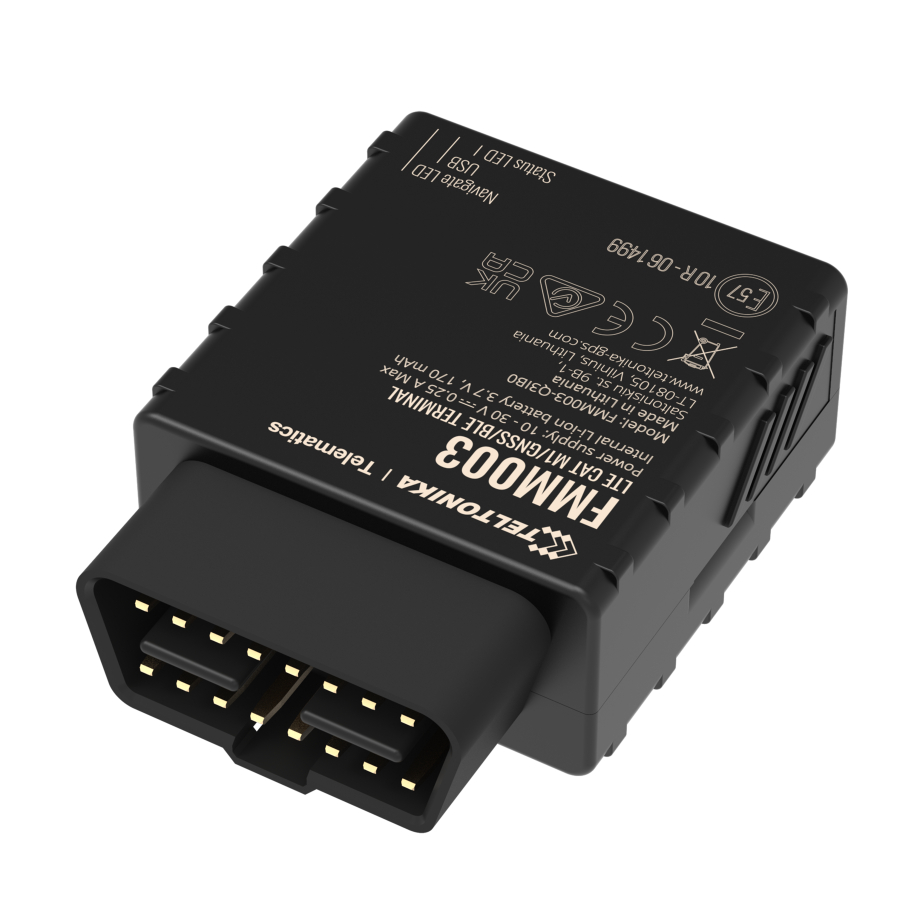

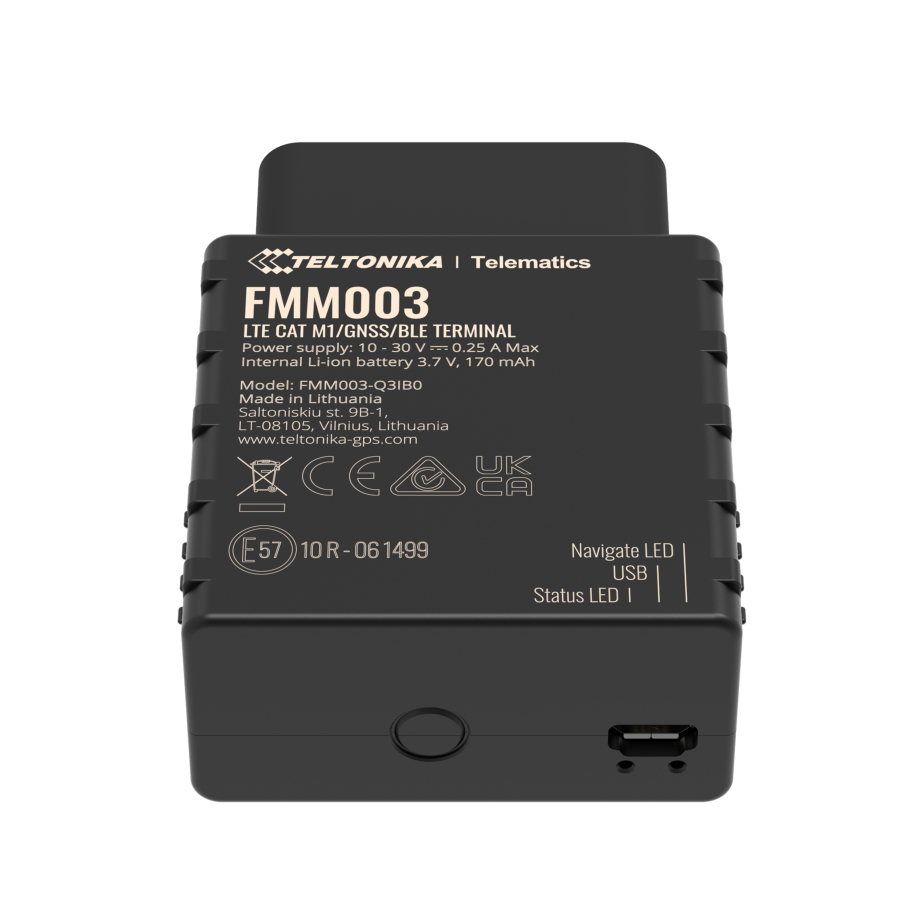

FMM003 is a small tracker with LTE CAT M1 network coverage including 2G (GSM) fallback compatibility. The main feature of FMM003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, the device comes with supported vehicles and data list, so you do not need to guess what data can be read from a specific vehicle.
It is a perfect tracker for a wide range of use cases – including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. The device supports various BLE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth which expands its already rich set of features.
מפרט טכני:
| Mobile Network |
|---|
| Mobile Network Generation | 2G (GSM), 4G (LTE), Cat M1 |
| FDD LTE Frequency Bands | 1 (2100MHz), 2 (1900MHz), 3 (1800MHz), 4 (1700MHz), 5 (850MHz), 8 (900MHz), 12 (700MHz), 13 (700MHz), 18 (850MHz), 19 (850MHz), 20 (800MHz), 25 (1900MHz), 26 (850MHz), 27 (850MHz), 28 (700MHz), 66 (1700MHz) |
| SIM Card Slot | Micro-SIM |
| Interfaces |
|---|
| USB Ports | (1) Micro USB |
| Management | Bluetooth |
| Bluetooth | 4.0 LE |
| Tracking |
|---|
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| OBDII Data | Supported |
| Software | Real fuel/odometer |
| Sensors | BLE Sensors/ Beacons, Bluetooth temperature and humidity sensor, Accelerometer |
| Power |
|---|
| Supported Input Voltage | 10 – 30 V DC |
| Battery | 170 mAh 3.7 V |
| Internal Battery Energy | 0.63 Wh |
| Physical Parameters |
|---|
| Ingress Protection Code | IP41 |
| Dimensions | 67 x 50 x 25 mm |
| Weight | 0.063 kg |
| Operating Temperature | -40 °C to 85 °C |
