Type: Wireless HDMI Extender Up To 200M 1080P@60Hz

Color: Black

Overview:

HDMI extender through wireless WIFI signal transmission HD audio and video signal, at the same time,
with infrared extensions to make remote control more convenient.The equipment has excellent image
processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of
economic and efficient way of HDMI signal extension.

Features:

• HDMI video and audio transmission via wireless WIFI, up to 200 meters
• 1TX to 2RX – the distance is up to 50 meters.
• HD video signal resolution up to 1920 * 1080 @ 60 Hz
• HDMI 1.3 compatible
• Special format H.264 is used to compress and decompress video, effectively improve the transferefficiency,
  to ensure that the playback fluency
• In accordance with standard 1.2 HDCP, high-bandwidth digital content protection technology
• Supports external remote infrared extension, easy to operate the remote device
• Transmitter support one channel LOOP OUT
• Able to automatically identify and configure a variety of display mode
• Built-in automatic balance system, the picture is fluent, clear and stable
• Simple and convenient installation, plug and play, do not need to set up

Specification:

Description Parameter HDMI 1.3; HDCP 1.2 Standards Video H.264 Compressed format 165MHz Maximum pixel clock 6.75Gbps Maximum data rate Max: 1920X1080p@60Hz Resolution HDMI-A Connector 100Ω Impedance Less than 5 meters, when 1920 x1080p @ 60 Hz Recommend HDMI maximum input/output range 3.5mm Stereo audio socket Interface IR Unidirectional Signal direction Digital Signal type 20-60kHz IR frequency 24dbm Radio Frequency power WIFI 802.11a/n Wireless standards Unidirectional signal direction 5.15-5.825GHz Radio frequency Undisturbed environment 200M Transmission distance Adapter:DC 5V Power Other MAX 10W Power dissipation Operating：-5℃ ~ +70℃ Temperature Operating：5% ~ 90% Humidity 112.6*95*18.2mm Size

Package includes:

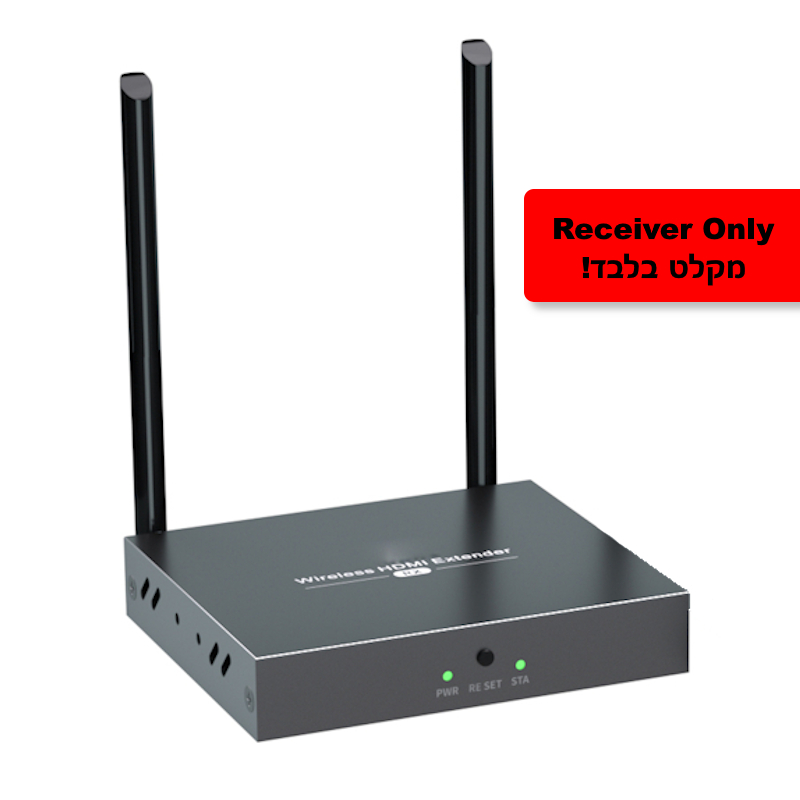

• HDMI receiver Only
• Power adapter
• IR TX/RX Cable
• User manual
